Waterjet Cutting MachinesSWS1200B Water Jet Cutting Machines
This water jet cutting machine uses ultra-high pressure water.It is a multi-purpose machine which is excellent in total balance. With this water jet cutting machine, the sheet for cutting is moved during cutting and the machine can be incorporated in a production line.
Model SWS1200B
Model SWS1200B

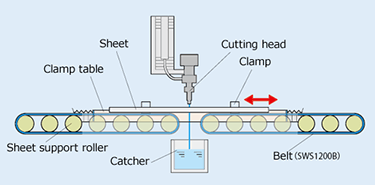

In this machine’s design in which the sheet for cutting is moved during cutting, the clamp table moves in the X-axis direction and the cutting head moves in the Y-axis direction, allowing cutting of free forms.
Features
- The catcher tank eliminates the use of consumables such as conventionally used SUS balls, therefore reducing running costs.
- The flat belt fixing frame is eliminated and the side bellows structure is reviewed, simplifying work loading/unloading and enabling easy incorporation in production lines.
Specifications
| Model | SWS1212B | SWS1225B |
|---|---|---|
| Cutting range | 1250 × 1250 mm | 2450 × 1250 mm |
| Rapid feed rate | 12000 mm/min | |
| Z-axis movement amount | 150 mm | |
| Number of simultaneously controlled axes | 2 axes | |
| Drive method | All-axis AC servo motor | |
| Max. table loading capacity | 138 kg | 276 kg |
| Input power※ | 3-phase, 200 V, 50/60 Hz, 63.6 kVA | 3-phase, 200 V, 50/60 Hz, 63.6 kVA |
| Machine dimensions | 3275 (L) × 2910 (W) × 3100 (H) mm | 5675 (L) × 3120 (W) × 3200 (H) mm |
| Machine weight | 4000 kg | 7000 kg |
- ※
- Includes the high-pressure pump.
■Specifications are subject to change due to constant improvements.
