Dry Aseptic filling decontamination system
for Sensitive beverage

Electron Beam (EB) Bottle Decontamination System

EB System Benefits:
Shibuya Corporation's Electron Beam PET bottle decontamination system is the first commercially developed system in the world.

Key benefits;

1)
Effective for all targeted microorganisms;
2)
Fewer critical control points (CCP) for easy operation and validation;
3)
Provides the lowest total cost of ownership (TCO).

Basic Layout

EB Sterilizer

Filler

Capper

Shibuya's EB sterilization is the first method in the world, which carries out the bottle sterilization by irradiating PET bottles using an Electron Beam. This method does not use water or chemicals to sterilize the bottle, therefore running costs are low and environmentally friendly.

  • Provide the lowest total cost of ownership (TCO)
  • Proven quick return on investment (ROI)
  • No chemicals or water required for bottle sterilization
  • No chemical residual risk
  • Effective for all targeted microorganisms
  • Easy operation and quick aseptic validation: fewer CCP’s
  • Smaller footprint
  • Reduction of CO2 emissions
  • Clean and safe operation
  • Double digit E-Beam Aseptic Filling Systems running production world-wide

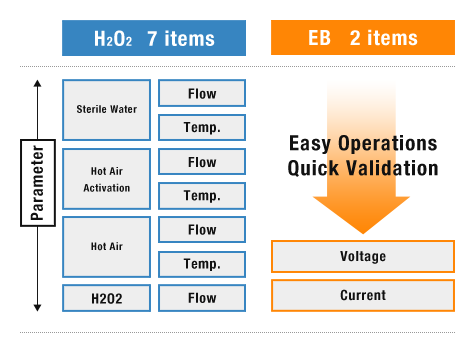

EB has fewer Critical Control Points (CCP)

EB Has Less CCPs

Shibuya's EB system reduces the number of Critical Control Points (CCP). Fewer CCPs provide easy operation and easy validation.

A conventional chemical sterilization system has 7 CCPs for validation and daily production management. These points require complex and specialized operation techniques.

The EB system, however, has only 2 CCPs for validation and dairy operation: voltage and electric current.

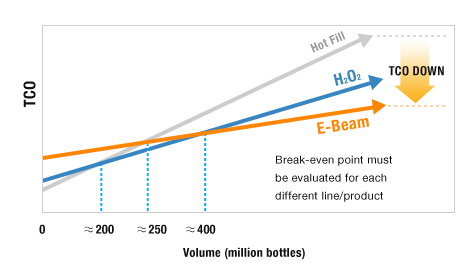

EB Provide the Lowest TCO

The Lowest Total Cost of Ownership

The EB system has many advantages which contribute to the drastic reduction of the Total Cost of Ownership (TCO). Although the capital cost is slightly higher initially, operating, electricity, steam, compressed air, chemical, container and utility costs are vastly reduced.

Considering the TCO, the EB system has significant advantages over the other systems after just a few short years of operation.

System Output
Output: 400bpm to 1200bpm(or 24000bph to 72000bph)
Packaging Flexibility
PET bottle (60ml~2000ml)
Allows greater freedom in bottle design (round, rectangular, square, or any shape or stand alone) / enables reduction of bottle weight
Quick & Automatic Changeover
Quick & Automatic packaging changeover without breaking sterility (between small PET and large PET)
Two neck profile handling (various closure size 28mm ~ 38mm) and quick changeover without breaking sterility
Filling Capability
Multi-purpose filling valve (Still, CSD and CSD with high juice contents)
Same filling valve for dairy, juice and smoothie (up to 1000 cps)
Product Safety
No chemical residual
No thermal degradation of beverage
Productivity
One person operation
The simplified liquid path with no irregular surfaces allows efficient washing and sanitation
Maintain beverage safety in case of extended or emergency stop
Reliability
The weight control algorithm automatically corrects for the effects of the centrifugal forces due to the filler rotation
Automatic zero and tare weighing functions combine for accurate fill weighing regardless of machine speed
Clean design for aseptic filler (No dead leg nor steam condensation pool)
