Wet Aseptic Filling Decontamination System
for High Acid Beverages

PAA Bottle Decontamination Technology for High Acid Beverages

PAA Bottle Decontamination:

Shibuya has developed PAA bottle decontamination technology for high acid beverages. If a beverage is high acid, PAA bottle decontamination is a good choice to deliver commercial sterility during operations. PAA wet decontamination provides strong washing action to remove localized microorganisms.

Basic Layout

Decontamination Technology
Decontamination level: Up to 6 log reduction value
Double decontamination method with peracetic acid and hydrogen peroxide for the chamber cleaning and decontamination process
Aseptic System Design
Bottle outlet with continuous disinfection of sterile / non-sterile barrier
Robust positive air pressure control: Maintain sterility of chamber with the over pressurized sterile air
Clean design for aseptic filler (No dead leg nor steam condensation pool)
Aseptic chamber: Dynamic sealing of rotating and stationary parts (Filler and Capper)
Filling & Capping Capability
Net weight filling method for high accuracy (σ=0.3g based on 500g)
100% individually controlled servo motors for reliable capping

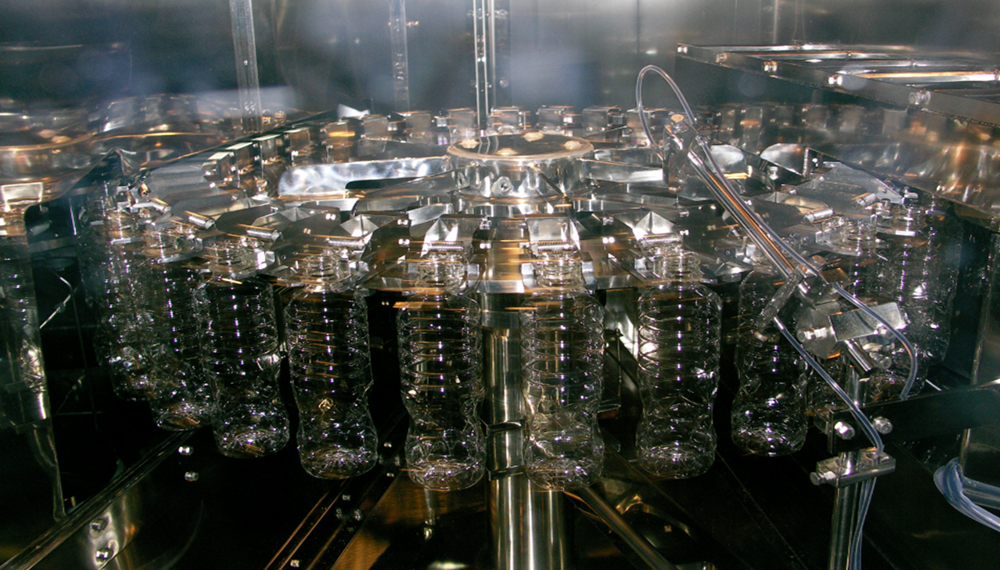

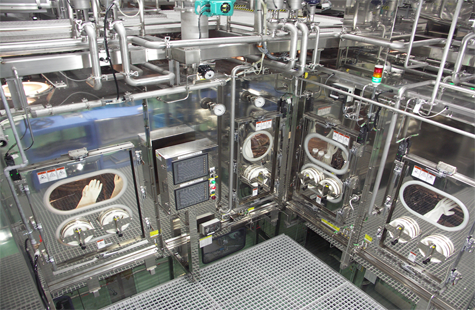

The Aseptic Chamber Design

Isolating all filling and capping units is critical for providing an aseptic environment.

The created aseptic environment can be maintained for an extended period of time behind robust positive air pressure control, a clean design (no dead leg, no steam condensation pool), and dynamic sealing of rotating and stationary parts.

System Output
Output: 400bpm to 1200bpm(or 24000bph to 72000bph)
Packaging Flexibility
PET and HDPE bottle (60ml~3800ml)
Allows greater freedom in bottle design (round, rectangular, square, or any shape or stand alone) / enables reduction of bottle weight
Quick & Automatic Changeover
Quick & Automatic packaging changeover without breaking sterility (between small PET and Large PET)
Two neck profile handling (various closure size 28mm ~ 38mm) and quick changeover without breaking sterility
Two Closure handling (capper with individual servo motor) and changeover without breaking sterility
Filling Capability
Multi-purpose filling valve (Still, CSD and CSD with high juice contents)
Same filling valve for dairy, juice and smoothie (up to 1000 cps)
Product Safety
Chemical residual: less than 0.5ppm
No preservatives required
No thermal degradation of beverage
Productivity
High productivity and system efficiency (≥95%)
Filling volume can be adjusted easily using switches on the operation panel, reducing changeover times
The simplified liquid path with no irregular surface allows for efficient washing and sanitation
Reliability
100% individually controlled servo motors for reliable capping
Programmable filling cycles to minimize foaming and splashing
Clean design for aseptic filler (No dead leg nor steam condensation pool)
