Solder Ball Mounters
SBM381 (For Wafers)
Inspection & repair machine / For min. φ0.05mm balls
SBM381 (For Wafers)
This machine does post-ball inspection and repair (rework) for the wafer bumping. Machine is also capable of repairing the double ball error on the ball mounted wafer.

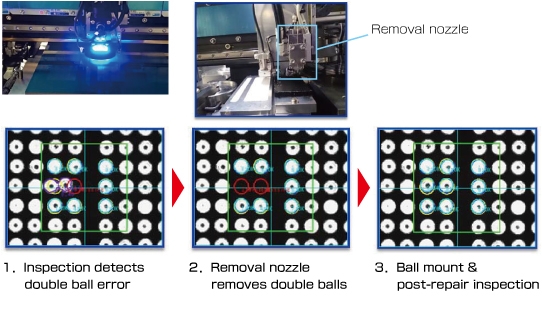

Inspection and repair
Features
- A ball removal mechanism enables repair of double balls and extra balls.
- A maximum of 3 million balls (min.φ0.05mm) can be inspected.
- The 2-stage structure simultaneously handles the inspection and repair processes at high throughput.
- Connecting with the micro ball mounter realizes an in-line configuration.
- Inspecting faulty locations before/after repair ensures higher mounting yield.
Specifications
| Model | SBM381 |
|---|---|
| Applicable product type | Wafer bumping Wafer level packages Electronic components |
| Ball size | φ0.05 to φ0.5 mm |
| Inspection/repair range | φ12-inch |
| Wafer size | φ8, φ12-inch (φ4 to 6-inch optionally available) |
| Unit dimensions | 1440 (L) × 1792 (W) × 1750 (H) mm |
| Unit weight | 1,500 kg |
